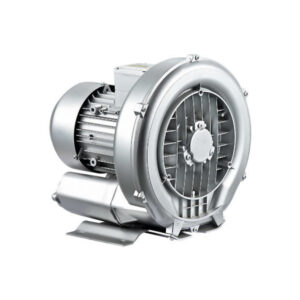

General Blower pumps
These pumps are used for all the announced cases and are available in the company’s warehouse from 0.12 kW to 20 kW. This type of pump is made of special Aluminum alloy materials to according to the required quality of Gol Pump Company in China and is supplied without UL certificate.
 |
Item | Model | PH | Power | Voltage | Current | MAX PRESSURE | Max Flow | Max Vaccume | NOISE | WHIGHT | PACKING SIZE | Data Sheet | |
| # | W | HP | Valtage | PSI | Gal/min | PSI | DB | LB | in | |||||
| 3161100 | GP1-210-250 | single phase | 250W | 0.33 | 110 V 60hz | 7 | 2 | 251 | 1.45 | <56 | 26 | 12*11*11 |
|
|
| 3161101 | GP1-210-370 | single phase | 370W | 0.5 | 110 V 60hz | 9 | 2.75 | 308 | 1.88 | <56 | 26 | 12*11*11 |
|
|
| 3161102 | GP1-310-550 | single phase | 550W | 0.75 | 110 V 60hz | 11.5 | 3.5 | 581 | 2.75 | <60 | 31 | 12*12*12 |
|
|
| 3161103 | GP1-410-750 | single phase | 750W | 1 | 110 V 60hz | 15.5 | 3.6 | 749 | 2.9 | <60 | 36 | 13*13*13 |
|
|
| 3161104 | GP1-510-1100 | single phase | 1.1KW | 1.5 | 220 V 60hz | 10.5 | 4.35 | 1078 | 3.5 | <60 | 55 | 15*15*15 |
|
|
| 3161105 | GP1-510-1500 | single phase | 1.5KW | 2 | 220 V 60hz | 14.2 | 4.5 | 1122 | 3.6 | <60 | 62 | 15*15*15 |
|
|
 |
3161106 | GP1-710-2200 | single phase | 2.2KW | 3 | 220 V 60hz | 6.2 | 1607 | 4.8 | <70 | 71 | 17*17*17 |
|
|
| 3161107 | GP3-510-1100 | three phase | 1.1KW | 1.5 | 220 V 60hz | 6 | 4.35 | 1078 | 3.5 | <60 | 51 | 15*15*15 |
|
|
| 3161108 | GP3-510-1500 | three phase | 1.5KW | 2 | 220 V 60hz | 6 | 4.5 | 1122 | 3.6 | <60 | 62 | 15*15*15 |
|
|
| 3161109 | GP3-610-2200S | three phase | 2.2KW | 3 | 220 V 60hz | 11 | 6 | 1496 | 4.5 | <70 | 66 | 16*16*16 |
|
|
| 3161110 | GP3-710-2200S | three phase | 2.2KW | 3 | 220 V 60hz | 11 | 6.2 | 1607 | 4.8 | <70 | 71 | 17*17*17 |
|
|
 |
3161111 | GP3-710-3000S | three phase | 3KW | 4 | 220 V 60hz | 13.5 | 6.4 | 1651 | 4.9 | <70 | 80 | 17*17.5*1.5 |
|
| 3161112 | GP3-710-4000S | three phase | 4KW | 5.5 | 220 V 60hz | 6.5 | 1695 | 5.1 | <70 | 88 | 17*17.5*1.5 |
|
||
| 3161113 | GP3-810-3000S | three phase | 3KW | 4 | 220 V 60hz | 13.5 | 6.4 | 2091 | 4.9 | <70 | 112 | 18*18*20 |
|
|
| 3161114 | GP3-810-4000S | three phase | 4KW | 5.5 | 220 V 60hz | 6.5 | 2311 | 5.1 | <70 | 120 | 18*18*20 |
|
||
| 3161115 | GP3-810-5500S | three phase | 5.5KW | 7.5 | 220 V 60hz | 7.25 | 2712 | 5.5 | <70 | 156.2 | 18*20*21 |
|
||
| 3161116 | GP3-810-7500S | three phase | 7.5KW | 10 | 220 V 60hz | 7.54 | 2817 | 6.1 | <70 | 163 | 18*20*21 |
|
||
