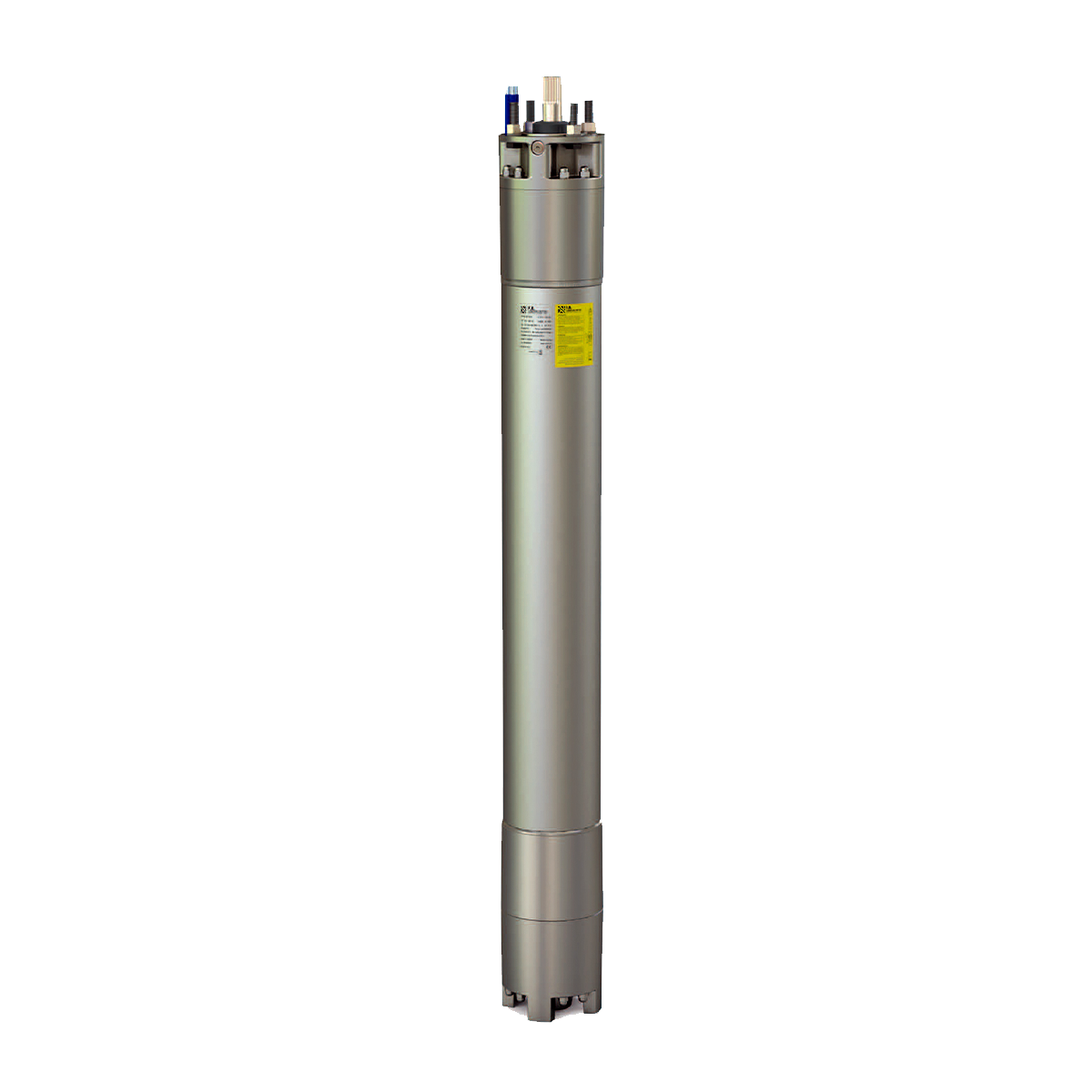

8" Motor
Features:
- Flange: 8” NEMA.
- Protection rating: IP68
- Number of starting each hour: Max. 10.
- Installation: vertical or horizontal.
- Installation below the water level: up to 500m.
- Motor Cable (WRAS, KTW, ACS approved) food grade 0,6 / 1kv.
Stainless Steel 316
| Picture | Item # | Model | P2 | Voltage | Phase | RPM | Data Sheet | |
|---|---|---|---|---|---|---|---|---|
| HP | kW | |||||||
|
2028201 | 8F60XC | 60 | 45 | 460V | Three phase | 3500 |  |
| 2028202 | 8F75XC | 75 | 55 | 460V | Three phase | 3490 | |
|
| 2028203 | 8F90XC | 90 | 66 | 460V | Three phase | 3483 | |
|
| 2028204 | 8F100XC | 100 | 75 | 460V | Three phase | 3490 | |
|
| 2028205 | 8F125XC | 125 | 92 | 460V | Three phase | 3500 | |
|
| 2028206 | 8F150XC | 150 | 110 | 460V | Three phase | 3499 | |
|
