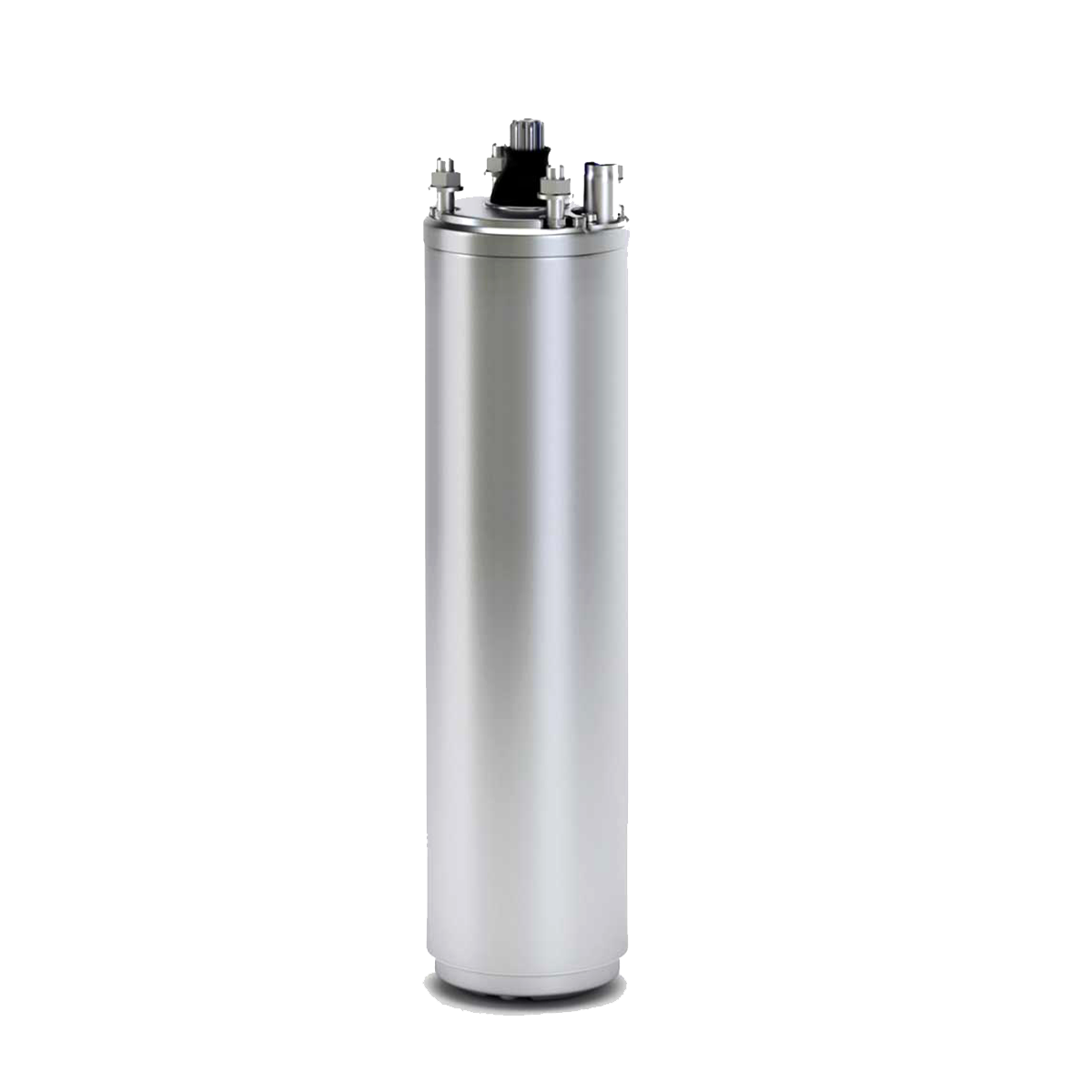

4" Motor
Features:
- Hermetically sealed stator, anti-track, stator resin filled prevent motor burn out.
- High efficiency provides operation cost savings.
- Thrust pad.
- Copper wiring.
- Pressure equalizing diaphragm.
- Removable lead connector.
- Standard NEMA mounting dimensions.
- Max. Immersion depth: 656 ft.
- Protection: IP68.
- Nos. of start per hour: max 20 at regular intervals.
- Sand slinger and lip seal.
- Insulation: Class F.
- Standard installation position: vertical and horizontal.
Stainless Steel 304
| Picture | Item # | Model | P2 | SF | Voltage | Phase | Wire | RPM | Data Sheet | |
|---|---|---|---|---|---|---|---|---|---|---|
| HP | kW | |||||||||
|
5331100 | 4CS2606M | 0.5 | 0.37 | 1.6 | 115V | Single phase | 2 | 3450 |  |
| 5331101 | 4CS2506M | 0.5 | 0.37 | 1.6 | 230V | Single phase | 2 | 3450 | |
|
| 5331102 | 4CS2516M | 0.75 | 0.55 | 1.5 | 230V | Single phase | 2 | 3450 | |
|
| 5331103 | 4CS3526M | 1 | 0.75 | 1.4 | 230V | Single phase | 2 | 3450 | |
|
| 5331104 | 4CS3536M | 1.5 | 1.1 | 1.3 | 230V | Single phase | 2 | 3450 | |
|
| 5331105 | 4CS2606S | 0.5 | 0.37 | 1.6 | 230V | Single phase | 3 | 3450 | |
|
| 5331110 | 4CS3546D | 2 | 1.5 | 1.25 | 230V | Single phase | 3 | 3450 | |
|
| 5331111 | 4CS4556D | 3 | 2.2 | 1.15 | 230V | Single phase | 3 | 3450 | |
|
| 5331112 | 4CS6566D | 5 | 3.7 | 1.15 | 230V | Single phase | 3 | 3450 | |
|
| 5331116 | 4CS3926 | 1 | 0.75 | 1.4 | 230V | Three phase | - | 3450 | |
|
| 5331117 | 4CS3946 | 2 | 1.5 | 1.25 | 230V | Three phase | - | 3450 | |
|
| 5331118 | 4CS4956 | 3 | 2.2 | 1.15 | 230V | Three phase | - | 3450 | |
|
| 5331119 | 4CS6966 | 4 | 3 | 1.15 | 230V | Three phase | - | 3450 | |
|
| 5331120 | 4CS6976 | 5 | 3.7 | 1.15 | 230V | Three phase | - | 3450 | |
|
| 5331121 | 4CS6996 | 7.5 | 5.5 | 1.15 | 230V | Three phase | - | 3450 | |
|
| 2028117 | 4WP 1000T | 10 | 7.5 | 1.15 | 230V | Three phase | - | 3490 | |
|
| 2028121 | 4CS4356 | 3 | 2.2 | 1.15 | 460V | Three phase | - | 3450 | |
|
| 5331129 | 4CS6376 | 5 | 3.7 | 1.15 | 460V | Three phase | - | 3450 | |
|
| 5331130 | 4CS6396 | 7.5 | 5.5 | 1.15 | 460V | Three phase | - | 3450 | |
|
Stainless Steel 316
| Picture | Item # | Model | P2 | SF | Voltage | Phase | Wire | RPM | Data Sheet | |
|---|---|---|---|---|---|---|---|---|---|---|
| HP | kW | |||||||||
|
5331131 | 4CN2606M | 0.5 | 0.37 | 1.6 | 115V | Single phase | 2 | 3450 | |
| 5331132 | 4CN2506M | 0.5 | 0.37 | 1.6 | 230V | Single phase | 2 | 3450 | |
|
| 5331133 | 4CN2516M | 0.75 | 0.55 | 1.5 | 230V | Single phase | 2 | 3450 | |
|
| 5331134 | 4CN3526M | 1 | 0.75 | 1.4 | 230V | Single phase | 2 | 3450 | |
|
| 5331135 | 4CN3536M | 1.5 | 1.1 | 1.3 | 230V | Single phase | 2 | 3450 | |
|
| 5331140 | 4CN3546D | 2 | 1.5 | 1.25 | 230V | Single phase | 3 | 3450 | |
|
| 5331141 | 4CN4556D | 3 | 2.2 | 1.15 | 230V | Single phase | 3 | 3450 | |
|
| 5331142 | 4CN6566D | 5 | 3.7 | 1.15 | 230V | Single phase | 3 | 3450 | |
|
| 5331148 | 4CN4956 | 3 | 2.2 | 1.15 | 230V | Three phase | - | 3450 | |
|
| 5331149 | 4CN6966 | 4 | 3 | 1.15 | 230V | Three phase | - | 3450 | |
|
| 5331150 | 4CN6976 | 5 | 3.7 | 1.15 | 230V | Three phase | - | 3450 | |
|
| 5331151 | 4CN6996 | 7.5 | 5.5 | 1.15 | 230V | Three phase | - | 3450 | |
|
| 5331159 | 4CN6376 | 5 | 3.7 | 1.15 | 460V | Three phase | - | 3450 | |
|
| 5331160 | 4CN6396 | 7.5 | 5.5 | 1.15 | 460V | Three phase | - | 3450 | |
|
