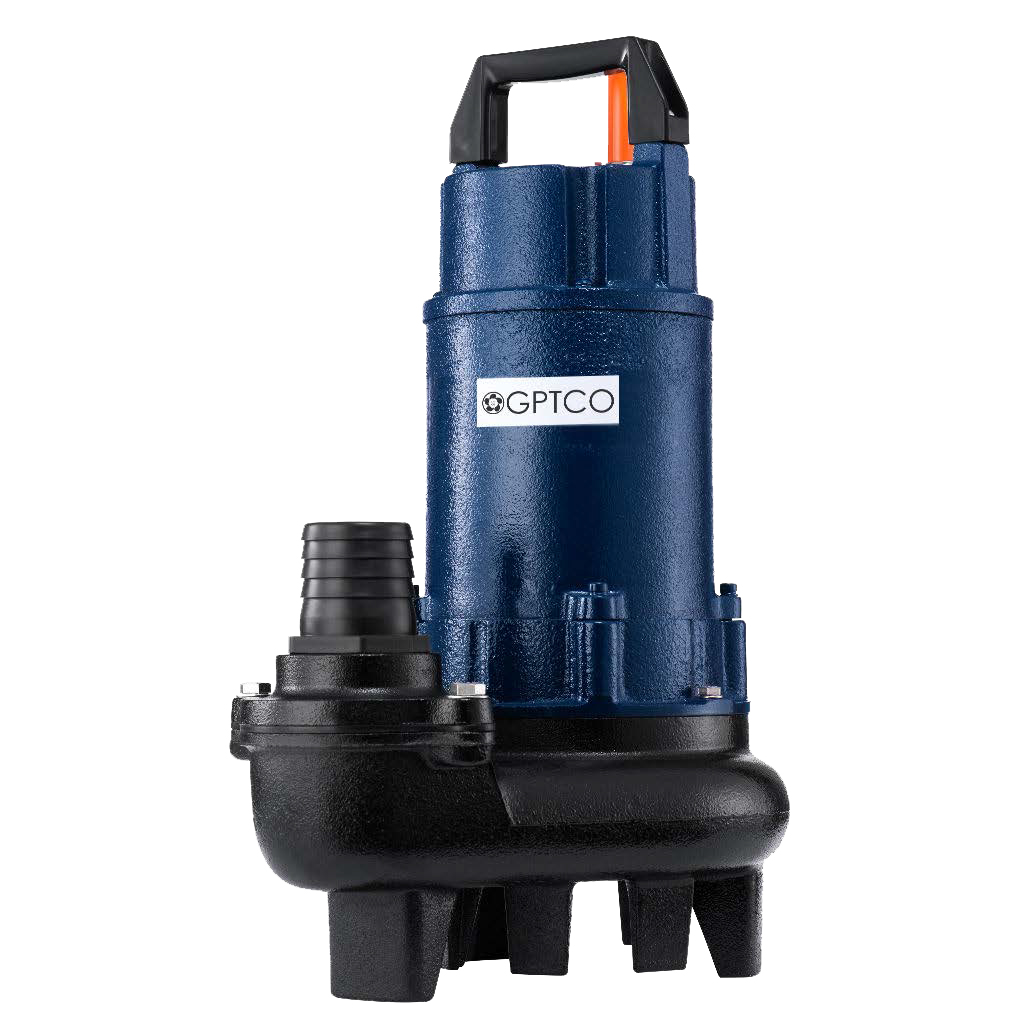

GGOCUT Series
GGOCUT Series, these cutter pumps are designed for handling raw sewage and for various wastewater treatments. The cutting mechanism consists of chopper plate and a tungsten carbide alloy tipped onto each vane of the semi-open channel impeller.
The device shreds fibrous materials into small pieces to prevent from clogging.
- Sewage pumping stations.
- Sewage treatment plants.
- Septic tanks.
- Collecting & settling sumps.
- Flood & emergency.
- Livid With Ropes, Can, Cable, Plastic, Bottles Pieces of wood, etc…
Cast Iron
| Picture | Item # | Model | Voltage | Phase | HP | Outlet | Performance | RPM | Data Sheet | |
|---|---|---|---|---|---|---|---|---|---|---|
| In. | Q (G/min) | H (ft.) | ||||||||
 |
5637141 | GGOCUT 208S | 115 | Single phase | 1 | 2 | 106 | 33 | 3450 |  |
| 5637142 | 230 | |||||||||
| 5637143 | GGOCUT 208 | 230/460 | Three phase | 1 | 2 | 106 | 33 | 3450 | ||
| 5637144 | GGOCUT 215S | 230 | Single phase | 2 | 2 | 132 | 56 | 3450 | ||
| 5637146 | GGOCUT 215 | 230 | Three phase | 2 | 2 | 132 | 56 | 3450 | ||
| 5637145 | GGOCUT 315S | 230 | Single phase | 2 | 3 | 159 | 52 | 3450 | ||
| 5637147 | GGOCUT 315 | 230 | Three phase | 2 | 3 | 159 | 52 | 3450 | ||
|
5637150 | GGOCUT 437 | 230/460 | Three phase | 5 | 4 | 317 | 66 | 3450 | |
GSTO Series
GSTO Series are designed for sewage application and maintenance simplified by automatic connecting device. The automatic connecting device performs connection/disconnection between a pump and piping only by lifting the pump down/up along guide pipes, so the maintenance and inspection work can be done without entering the septic tank.
- Effluent pumping in industrial wastewater treatment plants.
- Sewage wastewater and solid treatment in various factories and building sites.
- Food processing factory.
- Confined livestock feeding industry.
- Pulp and paper factory.
- Residential houses.
- Restaurants and shops.
- Markets and supermarkets.
Cast Iron
| Picture | Item # | Model | Voltage | Phase | HP | Outlet | Performance | RPM | Data Sheet | |
|---|---|---|---|---|---|---|---|---|---|---|
| In. | Q (G/min) | H (ft.) | ||||||||
 |
3837112 | GSTO 532C | 460 | Three phase | 5 | 4 | 530 | 59 | 1800 | |
| 3837150 | 230 | |||||||||
GFO Series
GFO Series is a submersible floor mount type sewage pump. Waterproof cable prevent water infiltration and cable end sealed with Epoxy resin. Built in motor protector. Adopted with Silicon carbide Mechanical seal.
- Effluent pumping in industrial wastewater treatment plants.
- Sewage wastewater and solid treatment in various factories and building sites.
- Food processing factory.
- Confined livestock feeding industry.
- Pulp and paper factory.
- Residential houses.
- Restaurants and shops.
- Markets and supermarkets.
Cast Iron
| Picture | Item # | Model | Voltage | Phase | HP | Outlet | Performance | RPM | Data Sheet | |
|---|---|---|---|---|---|---|---|---|---|---|
| In. | Q (G/min) | H (ft.) | ||||||||
|
3837120 | GFO 332C | 230 | Three phase | 3 | 3 | 370 | 46 | 1800 | |
| 3837122 | GFO 532C | 230 | Three phase | 5 | 4 | 530 | 59 | 1800 | |
|
