Gol Pumps Horizontal Multistage Pumps With Motor

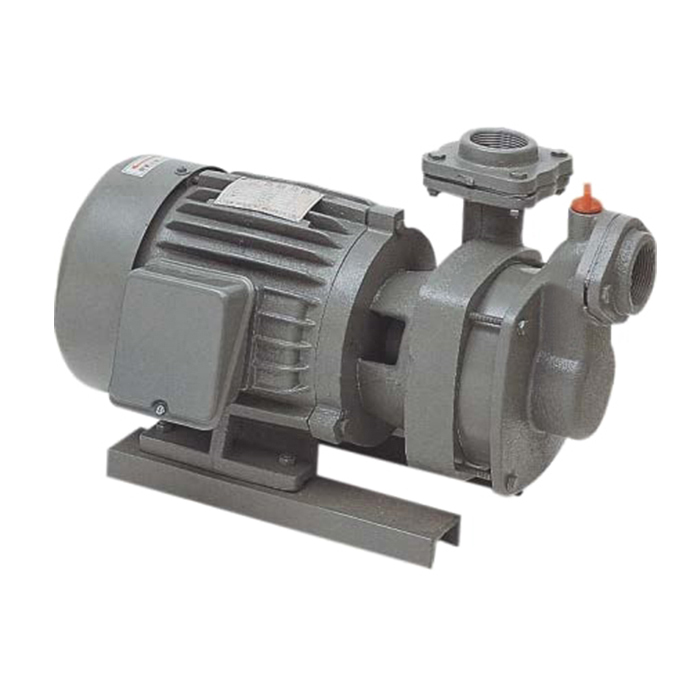

GSPM Series

GSPM: A horizontal, multistage centrifugal pump is made of cast iron. The pump is a self priming type.

Applications

  • Water supply and pressure boosting
  • Air-conditioning
  • Water treatment
  • Heating and cooling in industrial processes
  • Pressure boosting of process water
  • Fertilizer/dosing systems

Cast Iron

Picture Item # Model Voltage Phase HP Port Size (in.) Performance Data Sheet
Inlet Outlet Q (G/min) H (ft.)
3815105 GSPM 212L 220 Single phase 2 1 1/2 1 1/2 63 138 Girl in a jacket
3815107 GSPM 312L 220 Single phase 3 2 2 69 164 Girl in a jacket
3815108 GSPM 332L 220/460 Three phase 3 2 2 69 164 Girl in a jacket
3815109 GSPM 532L 220/460 Three phase 5 2 2 66 223 Girl in a jacket

CB - CBT Series

CB – CBT: The discharge and suction chamber are made of cast iron. The other parts of pump in contact with the liquid are made of stainless steel. EPDM or Viton O-rings are available as standard.

Applications

  • Domestic
  • Liquid transfer and circulation
  • Pressure boosting
  • Air-conditioning systems
  • Cooling systems or cooling machine
  • Specialized OEM equipment

Cast Iron

Picture Item # Model Voltage Phase HP Port Size (in.) Performance Data Sheet
Inlet Outlet Q (G/min) H (ft.)
5313100 CB 2-20 110/220 Single phase 0.6 1 1 18 85 Girl in a jacket
5313101 CB 2-30 110/220 Single phase 0.8 1 1 18 131 Girl in a jacket
5313102 CB 2-40 110/220 Single phase 1 1 1 18 177 Girl in a jacket
5313103 CB 2-50 110/220 Single phase 1.3 1 1 18 213 Girl in a jacket
5313104 CB 2-60 110/220 Single phase 1.6 1 1 18 259 Girl in a jacket
5313105 CB 4-20 110/220 Single phase 1 1 1/4 1 40 78 Girl in a jacket
5313106 CB 4-30 110/220 Single phase 1.5 1 1/4 1 40 121 Girl in a jacket
5313107 CB 4-40 220 Single phase 1.8 1 1/4 1 40 164 Girl in a jacket
5313108 CB 8-20 110/220 Single phase 1.4 1 1/2 1 1/4 53 92 Girl in a jacket
5313109 CB 8-30 220 Single phase 2 1 1/2 1 1/4 53 141 Girl in a jacket
5313110 CB 8-40 220 Single phase 2.3 1 1/2 1 1/4 53 177 Girl in a jacket
5313113 CB 12-20 220 Single phase 2.3 1 1/2 1 1/2 70 98 Girl in a jacket
5313126 CBT 12-10 220/460 Three phase 1 1 1/2 1 1/2 70 52 Girl in a jacket
5313127 CBT 12-20 220/460 Three phase 2.1 1 1/2 1 1/2 70 98 Girl in a jacket
5313128 CBT 12-30 220/460 Three phase 3.3 1 1/2 1 1/2 70 147 Girl in a jacket
5313129 CBT 12-40 220/460 Three phase 4.4 1 1/2 1 1/2 70 187 Girl in a jacket

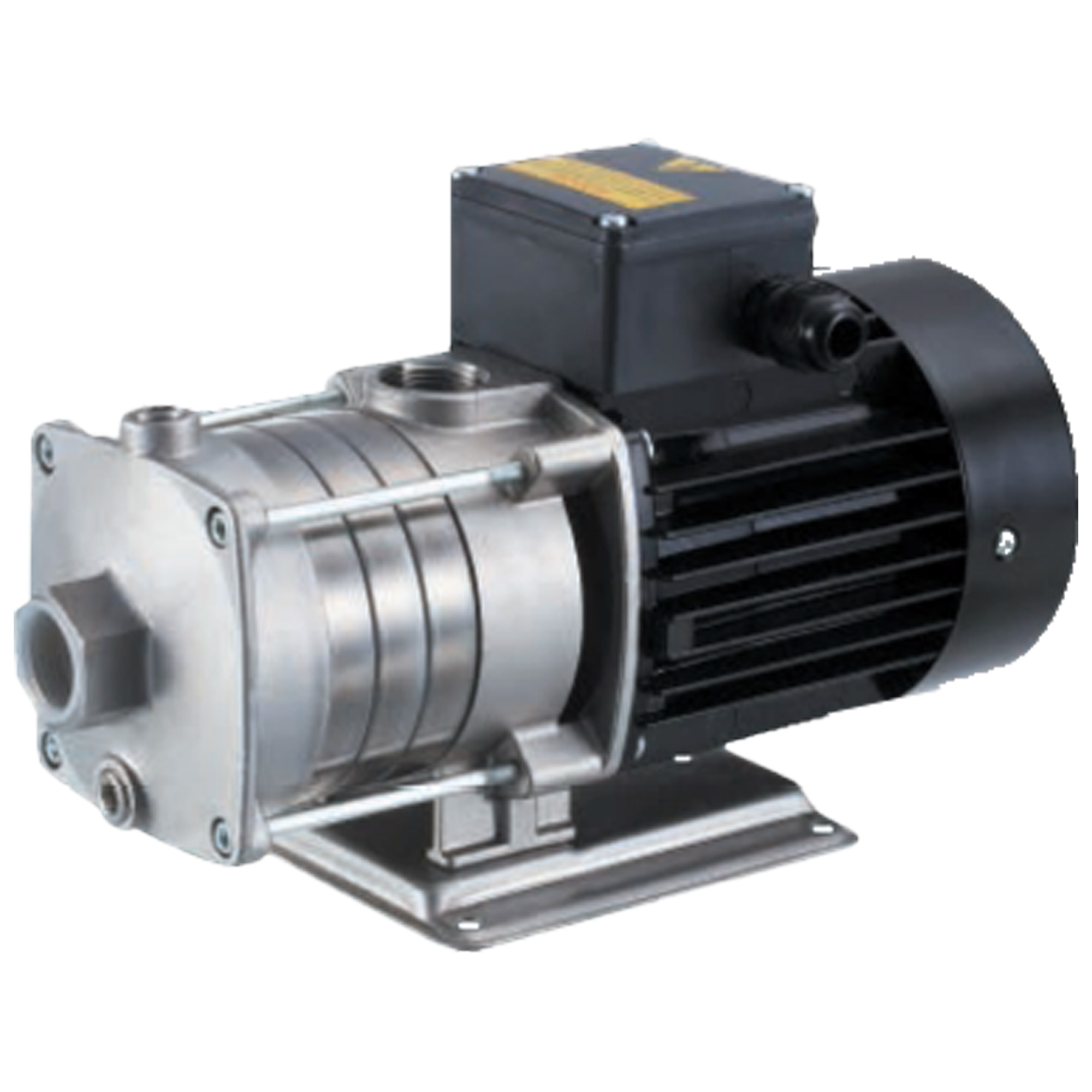

CBI Series

CBI: All parts of pump in contact with the liquid are made of stainless steel. EPDM or Viton O-rings are available as standard.

Applications

  • Domestic
  • Liquid transfer and circulation
  • Pressure boosting
  • Air-conditioning systems
  • Cooling systems or cooling machine
  • Specialized OEM equipment

Stainless Steel 304

Picture Item # Model Voltage Phase HP Port Size (in.) Performance Data Sheet
Inlet Outlet Q (G/min) H (ft.)
5313118 CBI 2-20 110/220 Single phase 0.6 1 1 18 85 Girl in a jacket
5313130 220/460 Three phase 0.5 Girl in a jacket
5313119 CBI 2-30 110/220 Single phase 0.8 1 1 18 131 Girl in a jacket
531331 220/460 Three phase 0.7 Girl in a jacket
5313120 CBI 2-40 110/220 Single phase 1 1 1 18 177 Girl in a jacket
5313132 220/460 Three phase Girl in a jacket
5313121 CBI 2-50 110/220 Single phase 1.3 1 1 18 213 Girl in a jacket
5313133 220/460 Three phase Girl in a jacket
5313122 CBI 2-60 110/220 Single phase 1.6 1 1 18 259 Girl in a jacket
5313134 220/460 Three phase 1.4 Girl in a jacket
5313123 CBI 4-20 110/220 Single phase 1 1 1/4 1 40 78 Girl in a jacket
5313135 220/460 Three phase Girl in a jacket
5313124 CBI 4-30 110/220 Single phase 1.5 1 1/4 1 40 121 Girl in a jacket
5313136 220/460 Three phase 1.4 Girl in a jacket
5313125 CBI 4-40 220 Single phase 1.8 1 1/4 1 40 164 Girl in a jacket
5313137 220/460 Three phase Girl in a jacket

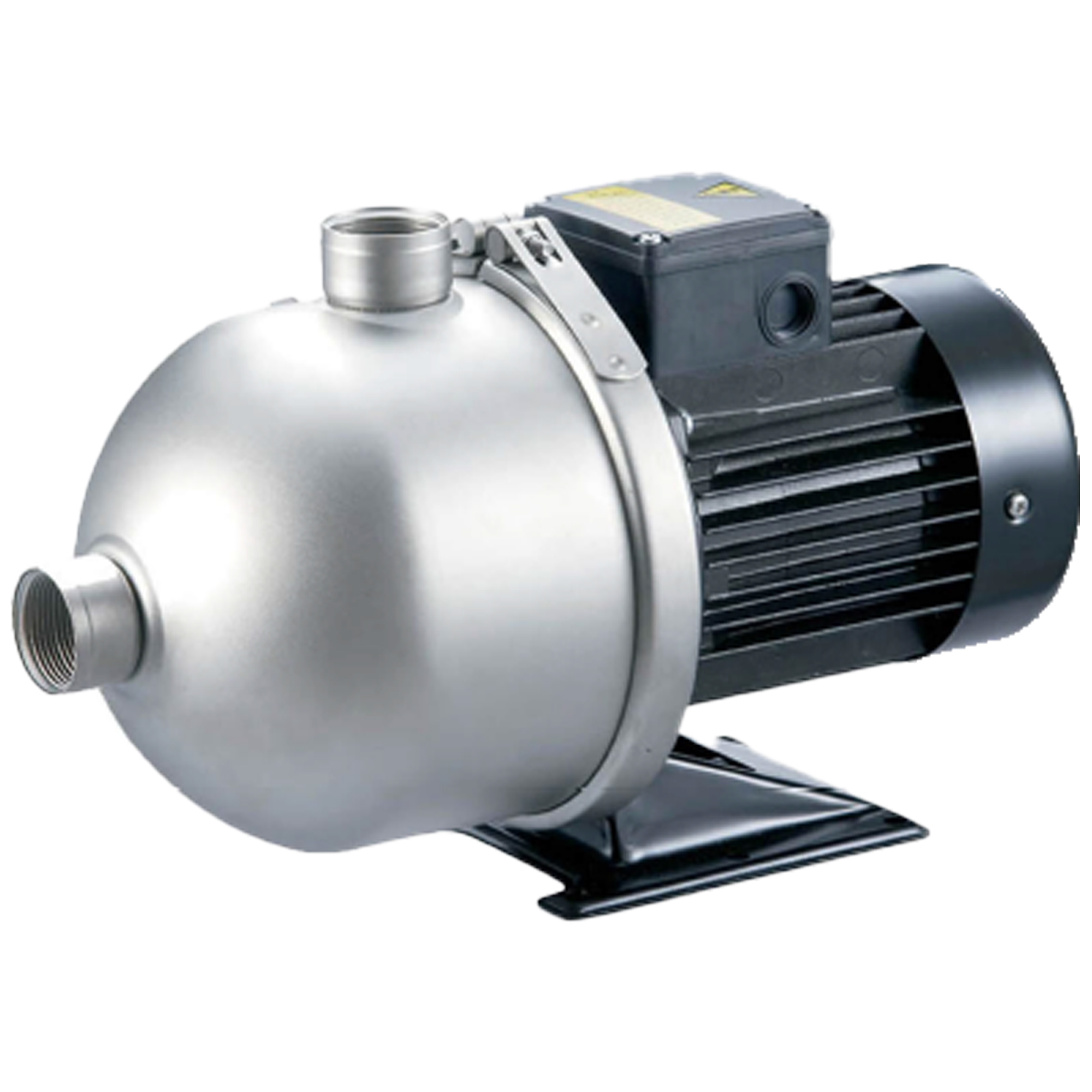

HBI - HBN Series

HBI – HBN: A horizontal, multistage centrifugal pump is made of stainless steel 304 and 316. The pump is a non-self priming type and fitted with a mechanical shaft seal.

Applications

  • Water supply and pressure boosting
  • Air-conditioning
  • Water treatment
  • Heating and cooling in industrial processes
  • Pressure boosting of process water
  • Fertilizer/dosing systems

Stainless Steel 304

Picture Item # Model Voltage Phase HP Port Size (in.) Performance Data Sheet
Inlet Outlet Q (G/min) H (ft.)
5313141 HBI 2-30 110/220 Single phase 0.8 1 1 20 125 Girl in a jacket
5313143 HBI 2-50 110/220 Single phase 1.3 1 1 20 213 Girl in a jacket
5313144 HBI 2-60 110/220 Single phase 1.5 1 1 20 259 Girl in a jacket
5313145 HBI 4-20 110/220 Single phase 1 1 1/4 1 1/4 40 89 Girl in a jacket
5313147 HBI 4-40 220 Single phase 1.9 1 1/4 1 1/4 40 180 Girl in a jacket
5313148 HBI 12-10 220 Single phase 2.4 1 1/2 1 1/2 71 95 Girl in a jacket
5313149 HBI 12-15 220/460 Three phase 3.2 1 1/2 1 1/2 71 144 Girl in a jacket
5313150 HBI 12-20 220/460 Three phase 4.5 1 1/2 1 1/2 71 187 Girl in a jacket

Stainless Steel 316

Picture Item # Model Voltage Phase HP Port Size (in.) Performance Data Sheet
Inlet Outlet Q (G/min) H (ft.)
5313151 HBN 2-30 110/220 Single phase 0.8 1 1 20 125 Girl in a jacket
5313153 HBN 2-50 110/220 Single phase 1.3 1 1 20 213 Girl in a jacket
5313154 HBN 2-60 110/220 Single phase 1.5 1 1 20 259 Girl in a jacket
5313155 HBN 4-20 110/220 Single phase 1 1 1/4 1 1/4 40 89 Girl in a jacket
5313157 HBN 4-40 220 Single phase 1.9 1 1/4 1 1/4 40 180 Girl in a jacket
5313163 HBN 12-10 220 Single phase 2.4 1 1/2 1 1/2 71 95 Girl in a jacket
5313165 HBN 12-15 220/460 Three phase 3.2 1 1/2 1 1/2 71 144 Girl in a jacket
5313166 HBN 12-20 220/460 Three phase 4.5 1 1/2 1 1/2 71 187 Girl in a jacket
