Home / Submersible Pumps 4″

Submersible Pumps 4″

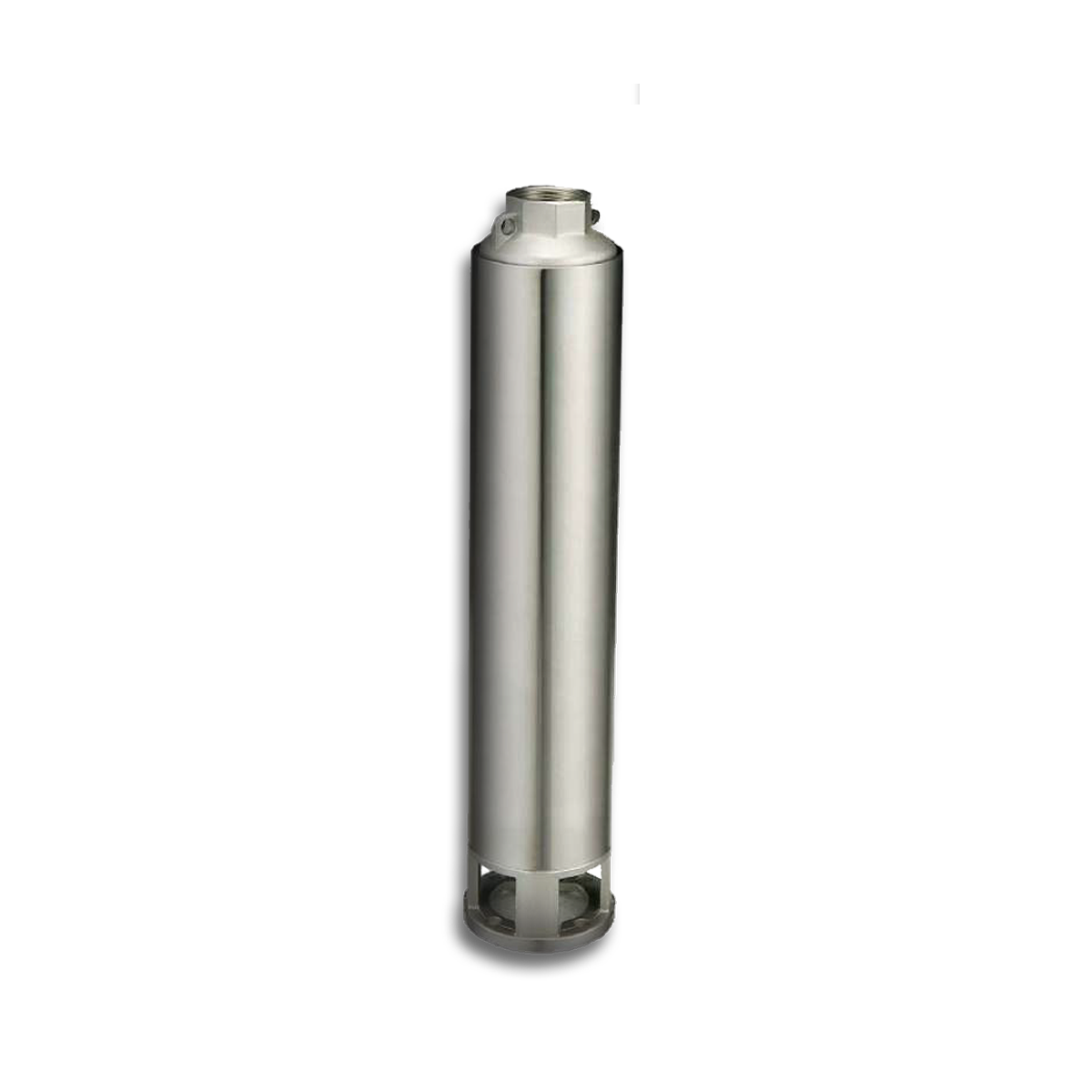

4" ST Series

  • Long life.
  • High efficiency.
  • High durability and solid construction.
  • Easy service operation.
  • Suitable connect on NEMA standards.
  • Water lubricated rubber bearing.
  • Built-in check valve to prevent back flow.
ST 05
ST 07
ST 10
ST 13
ST 18
ST 25
ST 35
ST 40
ST 55
ST 80
ST 05
ST 07
ST 10
ST 13
ST 18
ST 25
ST 40
ST 55
ST 80

Noryl

Picture Item # Model Pump Diameter Nominal Power Performance Outlet Data Sheet
In. HP kW Q (G/min) H (ft.) In.
5329145 ST 05-12 4 0.5 0.37 8 374 1 1/4 Girl in a jacket
5329146 ST 05-15 0.75 0.55 8 472 1 1/4 Girl in a jacket
5329147 ST 05-20 1 0.75 8 633 1 1/4 Girl in a jacket
5329148 ST 05-26 1.5 1.1 8 837 1 1/4 Girl in a jacket
5329149 ST 05-33 2 1.5 8 1050 1 1/4 Girl in a jacket
5329150 ST 07-10 4 0.5 0.37 13 302 1 1/4 Girl in a jacket
5329159 ST 07-13 0.75 0.55 13 394 1 1/4 Girl in a jacket
5329151 ST 07-17 1 0.75 13 512 1 1/4 Girl in a jacket
5329152 ST 07-22 1.5 1.1 13 666 1 1/4 Girl in a jacket
5329153 ST 07-27 2 1.5 13 807 1 1/4 Girl in a jacket
5329154 ST 07-34 3 2.2 13 1043 1 1/4 Girl in a jacket
5329163 ST 10-5 4 0.5 0.37 19 157 1 1/4 Girl in a jacket
5329164 ST 10-10 0.75 0.55 19 315 1 1/4 Girl in a jacket
5329160 ST 10-12 1 0.75 19 377 1 1/4 Girl in a jacket
5329165 ST 10-17 1.5 1.1 19 551 1 1/4 Girl in a jacket
5329161 ST 10-20 2 1.5 19 640 1 1/4 Girl in a jacket
5329162 ST 10-27 3 2.2 19 886 1 1/4 Girl in a jacket
5329155 ST 10-34 4 3 19 1112 1 1/4 Girl in a jacket
5329156 ST 10-42 5 3.7 19 1352 1 1/4 Girl in a jacket
5329157 ST 13-28 4 4 3 21 883 1 1/4 Girl in a jacket
5329158 ST 13-35 5 3.7 21 1073 1 1/4 Girl in a jacket
5329170 ST 18-8 4 1 0.75 29 246 1 1/4 Girl in a jacket
5329172 ST 18-14 2 1.5 29 436 1 1/4 Girl in a jacket
5329178 ST 25-4 4 0.5 0.37 32 118 1 1/2 Girl in a jacket
5329179 ST 25-7 1 0.75 32 207 1 1/2 Girl in a jacket
5329180 ST 25-11 2 1.5 32 328 1 1/2 Girl in a jacket
5329181 ST 25-15 3 2.2 32 446 1 1/2 Girl in a jacket
5329183 ST 25-26 5 3.7 32 768 1 1/2 Girl in a jacket
5329100 ST 35-6 4 1 0.75 48 171 2 Girl in a jacket
5329102 ST 35-10 2 1.5 48 299 2 Girl in a jacket
5329103 ST 35-14 3 2.2 48 420 2 Girl in a jacket
5329105 ST 35-22 5 3.7 48 656 2 Girl in a jacket
5329107 ST 35-34 7.5 5.5 48 1011 2 Girl in a jacket
5329108 ST 35-43 10 7.5 48 1293 2 Girl in a jacket
5329187 ST 40-6 4 2 1.5 66 180 2 Girl in a jacket
5329188 ST 40-14 5 3.7 66 423 2 Girl in a jacket
5329189 ST 40-21 7.5 5.5 66 636 2 Girl in a jacket
5329111 ST 55-9 4 3 2.2 79 249 2 Girl in a jacket
5329112 ST 55-15 5 3.7 79 420 2 Girl in a jacket
5329114 ST 55-22 7.5 5.5 79 627 2 Girl in a jacket
5329115 ST 55-29 10 7.5 79 824 2 Girl in a jacket
5329117 ST 80-7 4 5.5 4 122 200 2 Girl in a jacket
5329119 ST 80-10 5.5 4 122 289 2 Girl in a jacket
5329120 ST 80-14 7.5 5.5 122 413 2 Girl in a jacket

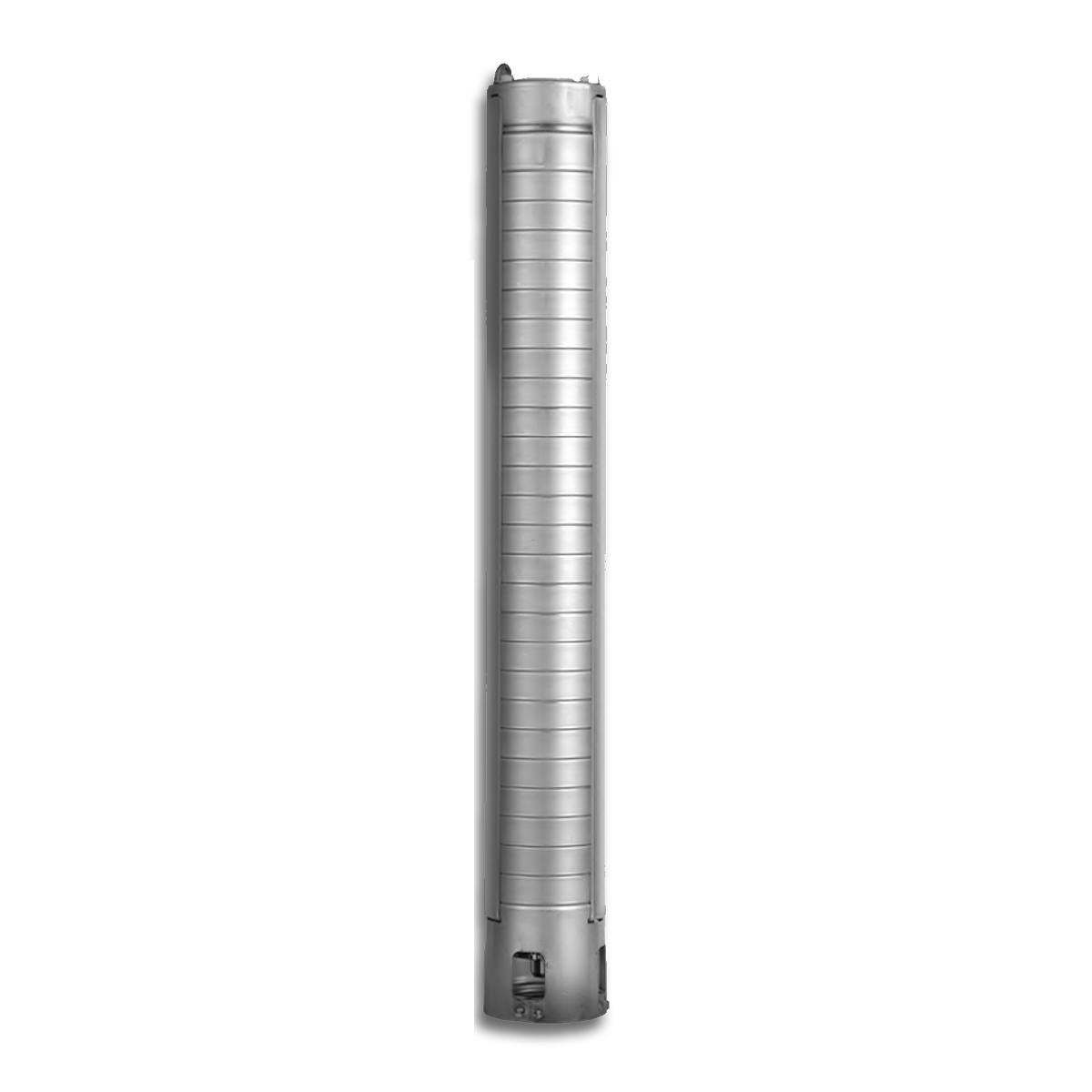

4" SP Series

  • Long life.
  • High efficiency.
  • High durability and solid construction.
  • Easy service operation.
  • Suitable connect on NEMA standards.
  • Water lubricated rubber bearing.
  • Built-in check valve to prevent back flow.
  • Stainless Steel 304 (SS304) and 316 (SS316).
SP 05
SP 10
SP 18
SP 25
SP 40
SP 70
SP 05
SP 10
SP 18
SP 25
SP 40
SP 70

Stainless Steel 304

Picture Item # Model Pump Diameter Nominal Power Performance Outlet Material Data Sheet
In. HP kW Q (G/min) H (ft.) In.
5329200 SP 05-9 4 0.33 0.25 7 249 1 1/4 SS316 Girl in a jacket
5329201 SP 05-18 0.75 0.55 7 249 1 1/4 SS316 Girl in a jacket
5329202 SP 10-9 4 0.5 0.37 13 253 1 1/4 SS316 Girl in a jacket
5329203 SP 10-12 0.75 0.55 13 335 1 1/4 SS316 Girl in a jacket
5329204 SP 10-15 1 0.75 13 420 1 1/4 SS316 Girl in a jacket
5329205 SP 10-21 1.5 1.1 13 587 1 1/4 SS316 Girl in a jacket
5329206 SP 10-27 2 1.5 13 745 1 1/4 SS316 Girl in a jacket
5329207 SP 10-34 3 2.2 13 942 1 1/4 SS316 Girl in a jacket
5329208 SP 18-7 4 0.75 0.55 21 217 1 1/4 SS316 Girl in a jacket
5329209 SP 18-10 1 0.75 21 305 1 1/4 SS316 Girl in a jacket
5329210 SP 18-14 1.5 1.1 21 430 1 1/4 SS316 Girl in a jacket
5329211 SP 18-18 2 1.5 21 548 1 1/4 SS316 Girl in a jacket
5329212 SP 18-24 3 2.2 21 728 1 1/4 SS316 Girl in a jacket
5329213 SP 18-32 4 3 21 968 1 1/4 SS316 Girl in a jacket
5329214 SP 18-38 5 3.7 21 1168 1 1/4 SS316 Girl in a jacket
5329215 SP 25-7 4 1 0.75 32 213 1 1/2 SS316 Girl in a jacket
5329124 SP 25-9 1.5 1.1 32 276 1 1/2 SS304 Girl in a jacket
5329216 SP 25-11 2 1.5 32 335 1 1/2 SS316 Girl in a jacket
5329126 SP 25-15 3 2.2 32 459 1 1/2 SS304 Girl in a jacket
5329217 SP 25-21 4 3 32 637 1 1/2 SS316 Girl in a jacket
5329218 SP 25-26 5 3.7 32 778 1 1/2 SS316 Girl in a jacket
5329219 SP 25-39 7.5 5.5 32 1181 1 1/2 SS316 Girl in a jacket
5329130 SP 40-4 4 1 0.75 53 108 2 SS304 Girl in a jacket
5329132 SP 40-7 2 1.5 53 194 2 SS304 Girl in a jacket
5329220 SS316 Girl in a jacket
5329133 SP 40-9 3 2.2 53 249 2 SS304 Girl in a jacket
5329221 SS316 Girl in a jacket
5329134 SP 40-12 4 3 53 331 2 SS304 Girl in a jacket
5329222 SS316 Girl in a jacket
5329135 SP 40-15 5 3.7 53 410 2 SS304 Girl in a jacket
5329223 SS316 Girl in a jacket
5329136 SP 40-18 7.5 5.5 53 492 2 SS304 Girl in a jacket
5329137 SP 40-21 7.5 5.5 53 574 2 SS304 Girl in a jacket
5329138 SP 40-25 7.5 5.5 53 679 2 SS304 Girl in a jacket
5329139 SP 40-30 10 7.5 53 824 2 SS304 Girl in a jacket
5329226 SS316 Girl in a jacket
5329227 SP 70-3 4 2 1.5 93 95 2 SS316 Girl in a jacket
5329141 SP 70-5 3 2.2 93 158 2 SS304 Girl in a jacket
5329228 SS316 Girl in a jacket
5329142 SP 70-8 5 3.7 93 249 2 SS304 Girl in a jacket
5329229 SS316 Girl in a jacket
5329143 SP 70-12 7.5 5.5 93 374 2 SS304 Girl in a jacket
5329230 SS316 Girl in a jacket
5329144 SP 70-16 10 7.5 93 502 2 SS304 Girl in a jacket
5329231 SS316 Girl in a jacket
